Pleated Elements

Jaxon Celebrates 25 Years & Introduces New Filter for Utility Industry





Made in the USA Supplied to the Dept of Defense



Pleated Filters with Specialty Medias in Hundreds of Configurations for Superior Filtration

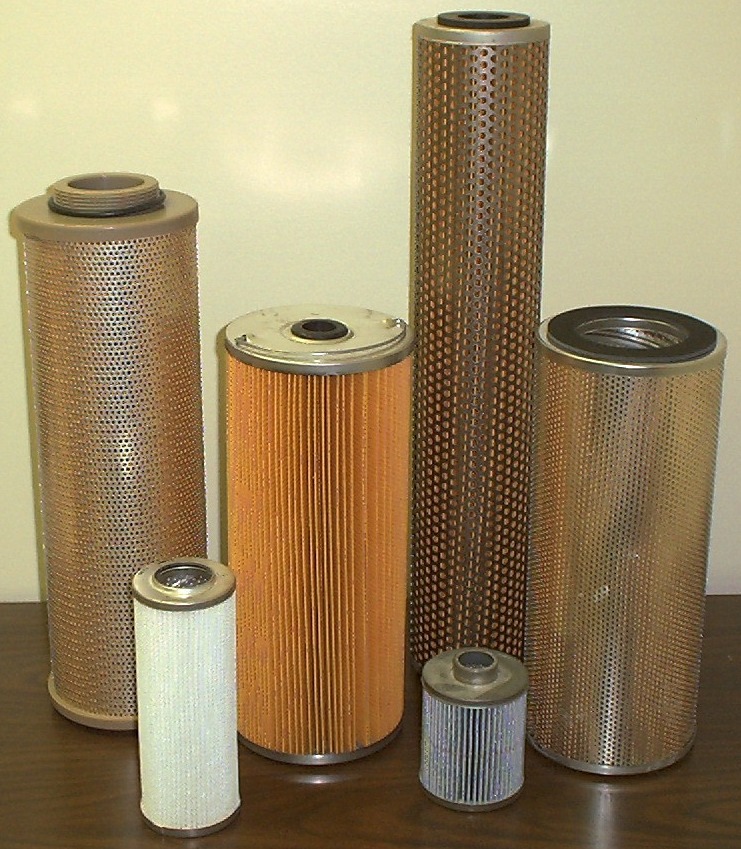

Shown are pleated cellulose and microglass filter elements in industry standard and custom sizes.







Jaxon Filtration offers pleated elements in a variety of sizes and end cap configurations.  Medias included pleated phenolic resin impregnated paper for nominal filtration applications, pleated microglass for absolute rated applications, cleanable pleated stainless steel for high temperature or corrosive processes, and many others available for custom applications.

Jaxon uses high quality materials in the construction of the pleated elements.  We use plated metal components, such as end caps, outer metal wrap, and center tube, for corrosion resistance.  We use a spiral formed center tube for high collapse ratings at increased differential pressures.  High quality thermoset adhesives are used to insure a stable bond between filter media and end caps, and Buna-N gaskets are standard on all pleated filters.

Key Benefits

bulletEfficiency ratings up to 99.5% for particulate removal.
bulletMultiple length cartidges available up to 44" in length.
bulletSpiral wound center cores for high collapse rating.
bulletPlated metal components for corrosion resistance.
bulletBuna-N gaskets standard.
bulletSignificant price savings compared to many OEM's.
bulletCustom sizing available for your specific application.

Jaxon offers replacement pleated elements for the following manufacturers:

AIR REFINER NUGENT
BALDWIN PALL
BANNER PARKER
CATERPILLAR PECO
COMMERCIAL POROUS MEDIA
DIAGNETICS REFILCO
DONALDSON ROYAL
FACET SCHROEDER
FILTERDYNE SEPARATION TECH
FLEETGUARD STAUFF
HILLIARD/HILCO VELCON
HYCON VICKERS
KAYDON/KEENE ZINGA

AND MANY OTHERS....
